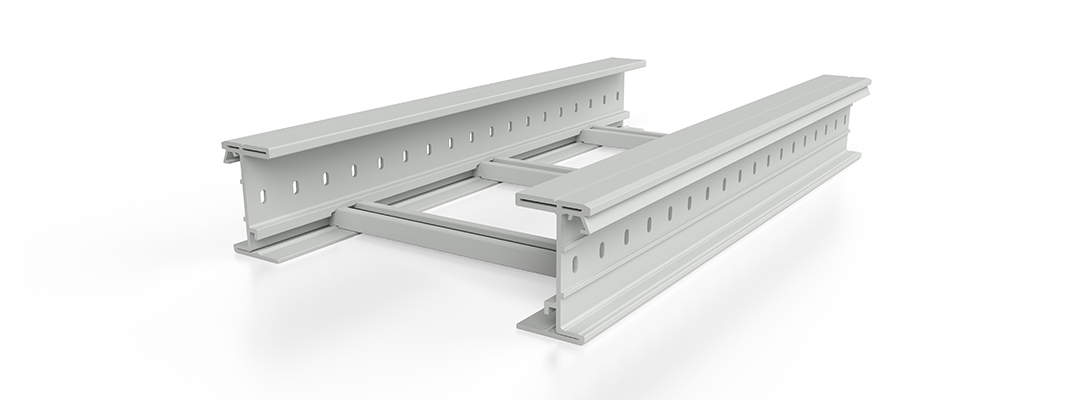

Insulating cable ladders 67 in U23X colour grey
Insulating cable ladder for the support and distribution of power and communication cables. For indoor and outdoor installations.
Choose
a product range
Colour:
Cable ladders:
Grey RAL 7035
Fittings and accessories and supports:
Grey RAL 7035
Fittings and accessories and supports:
Grey RAL 7038
Material:
Cable ladders:
Fittings and accessories and supports:
Fittings and accessories and supports:
Quality marks:
Technical characteristics
of the insulating cable ladders
Electrical
Insulating (electrically non-conductive system).
No earthing required.
Dielectric strength: 18±5 kV/mm.
Load
Load test conditions:
Test type I:
Longitudinal deflection: <1%.
Longitudinal deflection: <5%.
Impact
Impact resistance: 20J at -20ºC.
Temperature
Min. / Max. transport, storage, installation and application temperature: -20ºC / +60ºC.
Corrosion
Resistance against humid and saline corrosion: Inherently resistant to corrosion. Test is not necessary.
Chemical resistance against different substances defined by the standard depending on the concentration and temperature.
Outdoor
Good performance with exposure to UV rays.
Fire
Glow wire test at 960ºC.
Non flame propagating.
Reaction to fire, Class: M1.
Flammability test V0.
Does not spread fire by dripping.
Product configurator
Simple - Intuitive - Easy to use
An indispensable tool designed to facilitate the work of our customers:
- Configuration of all products on a single platform.
- Intuitive and easy to use, even on mobile phones.
- Complete part numbers list, which can be exported in PDF and Excel formats.
- Possibility to save your configurations.
With Unex configurator you will get all the information you need to carry out a correct and safe electrical installation.
Technical information
Downloads
Sizes and fittings
Insulating cable ladders
67200-04
Unex insulating cable ladder 85x200 in U23X
42,86 €/m
67300-04
Unex insulating cable ladder 85x300 in U23X
44,73 €/m
67400-04
Unex insulating cable ladder 85x400 in U23X
49,59 €/m
67500-04
Unex insulating cable ladder 85x500 in U23X
59,21 €/m
67600-04
Unex insulating cable ladder 85x600 in U23X
63,74 €/m
67220-04
Unex insulating cable ladder 135x200 in U23X
67,19 €/m
67320-04
Unex insulating cable ladder 135x300 in U23X
70,28 €/m
67420-04
Unex insulating cable ladder 135x400 in U23X
74,71 €/m
67520-04
Unex insulating cable ladder 135x500 in U23X
92,99 €/m
67620-04
Unex insulating cable ladder 135x600 in U23X
97,75 €/m
Covers
Dividers
Junctions
Horizontal hinges
Vertical hinges
Adjustable vertical bends
67212-04
Unex Adjustable vertical bend 85x200 in U23X
67,53 €/pc.
67312-04
Unex Adjustable vertical bend 85x300 in U23X
69,42 €/pc.
67412-04
Unex Adjustable vertical bend 85x400 in U23X
77,69 €/pc.
67512-04
Unex Adjustable vertical bend 85X500 in U23X
79,71 €/pc.
67612-04
Unex Adjustable vertical bend 85X600 in U23X
80,53 €/pc.
67232-04
Unex Adjustable vertical bend 135x200 in U23X
81,97 €/pc.
67332-04
Unex Adjustable vertical bend 135x300 in U23X
83,31 €/pc.
67432-04
Unex Adjustable vertical bend 135x400 in U23X
93,24 €/pc.
67532-04
Unex Adjustable vertical bend 135x500 in U23X
100,46 €/pc.
67632-04
Unex Adjustable vertical bend 135x600 in U23X
100,43 €/pc.
Flat corners 90º R300
67206-04
Unex Flat corner 90º 85x200 R300 in U23X
178,75 €/pc.
67306-04
Unex Flat corner 90º 85x300 R300 in U23X
184,29 €/pc.
67406-04
Unex Flat corner 90º 85x400 R300 in U23X
198,24 €/pc.
67506-04
Unex Flat corner 90º 85x500 R300 in U23X
209,65 €/pc.
67606-04
Unex Flat corner 90º 85x600 R300 in U23X
227,08 €/pc.
67226-04
Unex Flat corner 90º 135x200 R300 in U23X
215,15 €/pc.
67326-04
Unex Flat corner 90º 135x300 R300 in U23X
221,75 €/pc.
67426-04
Unex Flat corner 90º 135x400 R300 in U23X
276,86 €/pc.
67526-04
Unex Flat corner 90º 135x500 R300 in U23X
277,61 €/pc.
67626-04
Unex Flat corner 90º 135x600 R300 in U23X
283,98 €/pc.
Flat corners 90º R600
67207-04
Unex Flat corner 90º 85x200 R600 in U23X
196,56 €/pc.
67307-04
Unex Flat corner 90º 85x300 R600 in U23X
217,98 €/pc.
67407-04
Unex Flat corner 90º 85x400 R600 in U23X
219,60 €/pc.
67507-04
Unex Flat corner 90º 85x500 R600 in U23X
242,38 €/pc.
67607-04
Unex Flat corner 90º 85x600 R600 in U23X
246,27 €/pc.
67227-04
Unex Flat corner 90º 135x200 R600 in U23X
258,20 €/pc.
67327-04
Unex Flat corner 90º 135x300 R600 in U23X
276,04 €/pc.
67427-04
Unex Flat corner 90º 135x400 R600 in U23X
298,12 €/pc.
67527-04
Unex Flat corner 90º 135x500 R600 in U23X
313,73 €/pc.
67627-04
Unex Flat corner 90º 135x600 R600 in U23X
318,40 €/pc.
Flat corners 45º R300
67216-04
Unex Flat corner 45º 85x200 R300 in U23X
151,90 €/pc.
67316-04
Unex Flat corner 45º 85x300 R300 in U23X
154,36 €/pc.
67416-04
Unex Flat corner 45º 85x400 R300 in U23X
159,25 €/pc.
67516-04
Unex Flat corner 45º 85x500 R300 in U23X
178,80 €/pc.
67616-04
Unex Flat corner 45º 85x600 R300 in U23X
181,34 €/pc.
67236-04
Unex Flat corner 45º 135x200 R300 in U23X
187,06 €/pc.
67336-04
Unex Flat corner 45º 135x300 R300 in U23X
191,06 €/pc.
67436-04
Unex Flat corner 45º 135x400 R300 in U23X
198,37 €/pc.
67536-04
Unex Flat corner 45º 135x500 R300 in U23X
231,62 €/pc.
67636-04
Unex Flat corner 45º 135x600 R300 in U23X
235,19 €/pc.
Flat corners 45º R600
67217-04
Unex Flat corner 45º 85x200 R600 in U23X
156,59 €/pc.
67317-04
Unex Flat corner 45º 85x300 R600 in U23X
162,41 €/pc.
67417-04
Unex Flat corner 45º 85x400 R600 in U23X
163,63 €/pc.
67517-04
Unex Flat corner 45º 85x500 R600 in U23X
189,27 €/pc.
67617-04
Unex Flat corner 45º 85x600 R600 in U23X
192,58 €/pc.
67237-04
Unex Flat corner 45º 135x200 R600 in U23X
195,17 €/pc.
67337-04
Unex Flat corner 45º 135x300 R600 in U23X
202,88 €/pc.
67437-04
Unex Flat corner 45º 135x400 R600 in U23X
206,53 €/pc.
67537-04
Unex Flat corner 45º 135x500 R600 in U23X
244,59 €/pc.
67637-04
Unex Flat corner 45º 135x600 R600 in U23X
251,46 €/pc.
Flat corners covers
67214-04
Unex Flat corner cover 45º 200 R300 in U23X
49,51 €/pc.
67215-04
Unex Flat corner cover 45º 200 R600 in U23X
82,61 €/pc.
67314-04
Unex Flat corner cover 45º 300 R300 in U23X
60,23 €/pc.
67315-04
Unex Flat corner cover 45º 300 R600 in U23X
83,43 €/pc.
67414-04
Unex Flat corner cover 45º 400 R300 in U23X
65,52 €/pc.
67415-04
Unex Flat corner cover 45º 400 R600 in U23X
94,46 €/pc.
67514-04
Unex Flat corner cover 45º 500 R300 in U23X
75,10 €/pc.
67515-04
Unex Flat corner cover 45º 500 R600 in U23X
94,56 €/pc.
67614-04
Unex Flat corner cover 45º 600 R300 in U23X
114,85 €/pc.
67615-04
Unex Flat corner cover 45º 600 R600 in U23X
147,24 €/pc.
T branches R300
67218-04
Unex T branch 85x200 R300 in U23X
194,19 €/pc.
67318-04
Unex T branch 85x300 R300 in U23X
201,68 €/pc.
67418-04
Unex T branch 85x400 R300 in U23X
219,46 €/pc.
67518-04
Unex T branch 85x500 R300 in U23X
232,26 €/pc.
67618-04
Unex T branch 85x600 R300 in U23X
237,76 €/pc.
67238-04
Unex T branch 135x200 R300 in U23X
234,08 €/pc.
67338-04
Unex T branch 135x300 R300 in U23X
257,24 €/pc.
67438-04
Unex T branch 135x400 R300 in U23X
278,24 €/pc.
67538-04
Unex T branch 135x500 R300 in U23X
301,90 €/pc.
67638-04
Unex T branch 135x600 R300 in U23X
308,50 €/pc.
T branches R600
67219-04
Unex T branch 85x200 R600 in U23X
259,08 €/pc.
67319-04
Unex T branch 85x300 R600 in U23X
266,32 €/pc.
67419-04
Unex T branch 85x400 R600 in U23X
281,33 €/pc.
67519-04
Unex T branch 85x500 R600 in U23X
366,78 €/pc.
67619-04
Unex T branch 85x600 R600 in U23X
376,22 €/pc.
67239-04
Unex T branch 135x200 R600 in U23X
311,14 €/pc.
67339-04
Unex T branch 135x300 R600 in U23X
320,78 €/pc.
67439-04
Unex T branch 135x400 R600 in U23X
338,69 €/pc.
67539-04
Unex T branch 135x500 R600 in U23X
445,55 €/pc.
67639-04
Unex T branch 135x600 R600 in U23X
454,70 €/pc.
Crossovers
67208-04
Unex Crossover 85x200 R300 in U23X
301,43 €/pc.
67209-04
Unex Crossover 85x200 R600 in U23X
460,78 €/pc.
67308-04
Unex Crossover 85x300 R300 in U23X
309,91 €/pc.
67309-04
Unex Crossover 85x300 R600 in U23X
475,20 €/pc.
67408-04
Unex Crossover 85x400 R300 in U23X
381,66 €/pc.
67409-04
Unex Crossover 85x400 R600 in U23X
484,91 €/pc.
67508-04
Unex Crossover 85x500 R300 in U23X
401,82 €/pc.
67509-04
Unex Crossover 85x500 R600 in U23X
490,59 €/pc.
67608-04
Unex Crossover 85x600 R300 in U23X
409,11 €/pc.
67609-04
Unex Crossover 85x600 R600 in U23X
500,15 €/pc.
67228-04
Unex Crossover 135x200 R300 in U23X
357,87 €/pc.
67229-04
Unex Crossover 135x200 R600 in U23X
528,63 €/pc.
67328-04
Unex Crossover 135x300 R300 in U23X
368,18 €/pc.
67329-04
Unex Crossover 135x300 R600 in U23X
541,64 €/pc.
67428-04
Unex Crossover 135x400 R300 in U23X
448,99 €/pc.
67429-04
Unex Crossover 135x400 R600 in U23X
551,57 €/pc.
67528-04
Unex Crossover 135x500 R300 in U23X
478,80 €/pc.
67529-04
Unex Crossover 135x500 R600 in U23X
584,74 €/pc.
67628-04
Unex Crossover 135x600 R300 in U23X
486,16 €/pc.
67629-04
Unex Crossover 135x600 R600 in U23X
593,70 €/pc.
Halogen free insulating horizontal supports
60203-44
Unex Insulating horizontal support 200 mm in U48X halogen free
11,28 €/pc.
60303-44
Unex Insulating horizontal support 300 mm in U48X halogen free
16,34 €/pc.
60403-44
Unex Insulating horizontal support 400 mm in U48X halogen free
32,20 €/pc.
60503-44
Unex Insulating horizontal support 500 mm in U48X halogen free
60,18 €/pc.
60603-44
Unex Insulating horizontal support 600 mm in U48X halogen free
63,77 €/pc.
Halogen free support fixings
Halogen free hold-down bracket
Halogen free cover fixings
Halogen free raised cover clamps
Halogen free cable cleats
67701-48
Unex Cable cleat Ø8-12 in U48X halogen free
3,23 €/pc.
67711-48
Unex Cable cleat Ø12-16 in U48X halogen free
3,37 €/pc.
67721-48
Unex Cable cleat Ø16-22 in U48X halogen free
3,50 €/pc.
67731-48
Unex Cable cleat Ø22-28 in U48X halogen free
3,60 €/pc.
67741-48
Unex Cable cleat Ø28-34 in U48X halogen free
5,99 €/pc.
67751-48
Unex Cable cleat Ø34-40 in U48X halogen free
6,10 €/pc.
67761-48
Unex Cable cleat Ø40-46 in U48X halogen free
6,20 €/pc.
67771-48
Unex Cable cleat Ø46-52 in U48X halogen free
7,23 €/pc.
67791-48
Unex Cable cleat Ø58-64 in U48X halogen free
7,56 €/pc.
Rooftop support
Insulating strut channel halogen free
Spring channel nuts halogen free
Bolts with nuts
66829-A4
Unex Bolt with nut DIN 6921 M8x25 in AISI 316
185,46 €/100pc.
66839-A4
Unex Bolt with nut DIN 603 M8x25 in AISI 316
154,78 €/100pc.
66829-C6
Unex Bolt with nut DIN 6921 M8X25 in Galvanized class 6
110,68 €/100pc.
66839-C6
Unex Bolt with nut DIN 603 M8X25 in Galvanized class 6
110,13 €/100pc.
66849-A4
Unex Bolt with nut DIN 6921 M8X35 in AISI 316
311,87 €/100pc.
66849-C6
Unex Bolt with nut DIN 6921 M8X35 in Galvanized class 6
120,16 €/100pc.
66859-A4
Unex Bolt with nut DIN 6921 M8x50 in AISI 316
5,21 €/pc.
66859-C6
Unex Bolt with nut DIN 6921 M8x50 in Galvanized class 6
3,76 €/pc.
Bolts
66819
Unex insulating protector for plug M8 LDPE
25,69 €/100pc.
60829-A4
Unex Bolt DIN 6921 M8X25 in AISI 316
1,60 €/pc.
60829-C6
Unex Bolt DIN 6921 M8x25 in Galvanized class 6
0,70 €/pc.
60849-A4
Unex Bolt DIN 6921 M8X35 in AISI 316
2,53 €/pc.
60849-C6
Unex Bolt DIN 6921 M8X35 in Galvanized class 6
0,75 €/pc.
ID plates
67010-YL
Unex ID plate 40x100 mm colour yellow in U48X halogen free
1,97 €/pc.
67010-BU
Unex ID plate 40x100 mm colour blue in U48X halogen free
1,97 €/pc.
67010-RD
Unex ID plate 40x100 mm colour red in U48X halogen free
1,97 €/pc.
67010-GN
Unex ID plate 40x100 mm colour green in U48X halogen free
1,97 €/pc.
