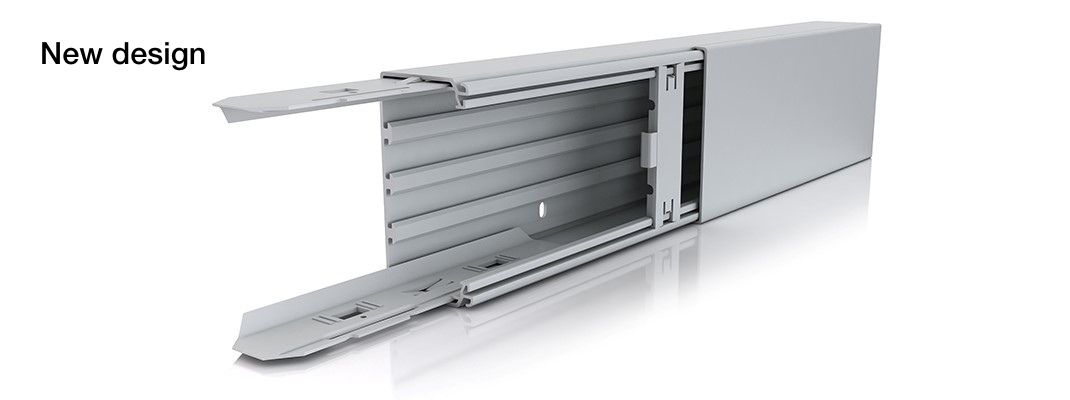

Trunkings 73 in U23X colour grey
Insulating trunking for cable distribution, easy to mount and suitable for outdoors.
Choose
a product range
Colour:
Trunkings:
Grey RAL 7035
Fittings and accessories:
Grey RAL 7035
Material:
Trunkings:
Fittings and accessories:
Quality marks:
Technical characteristics
of the trunkings
Electrical
Insulating (electrically non-conductive system).
No earthing required.
Impact
Protection against mechanical damage: IK10.
Temperature
Minimum installation and application temperature: -25ºC.
Maximum application temperature: +60ºC.
Protection degree
Protection degree assured by the enclosure mounted on the wall or ceiling: IP4X.
Corrosion
Resistance against corrosion and chemical agents.
Outdoor
Good performance with exposure to UV rays.
Fire
Glow wire test at 960ºC.
Non flame propagating.
Reaction to fire, Class: M1.
Flammability test V0.
Does not spread fire by dripping.
The trunking
as continuous connection box
Possibility to replace pipes
Possibility to replace two or more tubes by a single trunking using the same type of 750V conductor. Easy to transfer to another installation with conduit. By using the trunking, the installation's expansion coefficient is 70%.
Aesthetic integration of the trunking with the rest of the construction elements.
Mounting with terminal blocks
With trunkings 60x60 or bigger, it is possible to make connections with terminal blocks, without the need to place an enclosure.
Mechanical safety of the trunkings
IK10
In order to meet the highest requirements in terms of impact resistance, the Trunking 73 guarantees IK10 type 1 impact protection, with NF certification.
